Jet-Tech EV22 High Temp Door Type Dishwasher w/ Built-In Booster, 208-240v/1ph
PRODUCT DESCRIPTION AND SPECIFICATIONS
Jet-Tech EV22 High Temp Door Type Dishwasher w/ Built-In Booster, 208-240v/1ph
The Jet-Tech EV22 dishwasher is built for efficiency. With a cycle time of 1 hour, it can clean 30 racks using only 0.85 gallons of water. Its combination rack and peg dish rack are 19.75" square for quick and easy loading. High-temp rinse ensures proper sanitization, while alternating heating elements reduce energy costs. A digital temp display plus 2- or 3-minute cycle times complete the package.
Standard equipment includes :
- One open combination rack
- One peg dish rack 19.75" x 19.75" (500 mm x 500 mm)
Warranty
1 year parts and labor.

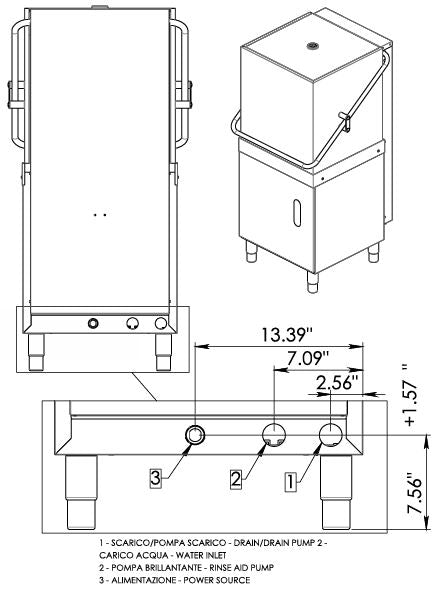

Water Connection
Shut-off valve must be a single direction, spool, sphere, lid control type, which can shut water supply off quickly and totally. The water pressure and flow must conform to the data diagram supplied with each machine.
Water Supply Pressure
Check that dynamic water supply pressure, measured between the appliance and the main, is between 200 and 400kPa. If the pressure is too high, fit a suitable pressure reducer on the inlet pipe. If the pressure is low, install an additional external pressure motor pump.
If there is a high concentration of mineral residues in the water or high conductivity, we recommend installing the demineralization filter for 5/7° f.
Models Gravity Drainage
The drainage line must comprise of a sump pit, free flow, of proper size capable to dispose twice the water flow indicated on the data diagram. It must be close to the drain pipe of the machine without bending, stretching or jointing the pipe.
Models With Drain Pump
Position the outlet pipe at a height anywhere between 30" and 40" from the floor.

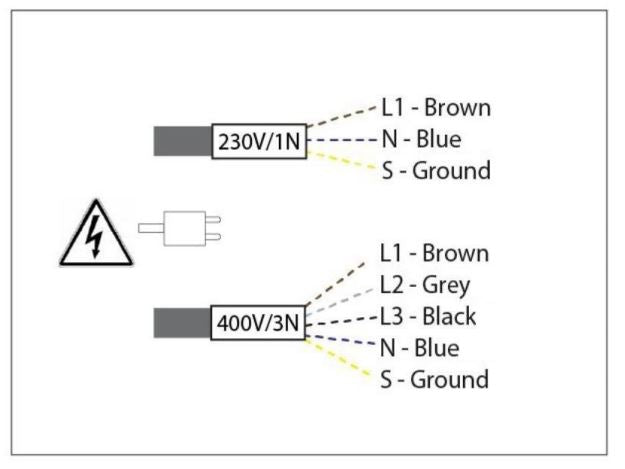

Electrical Connection
All contacts must be mechanically open, ground line included, min. distance between contacts 3 mm, with magnetic overload or fuses, calibrated for a max, sustained current in agreement with machine date plate. It must be installed outside the machine but close to it. It must feed only one machine at time. Machine cannot be connected to mains using adapters, plug, cables or cable extensions not properly sized and adequate to the machine’s power requirements.
WARNING: The manufacturer is not responsible for damages or injuries caused for improper grounding. The ground and the electrical connections should be in compliance with national regulations.
Grounding point on machine must be connected to nearest appliance terminal according to Safety Standards.
Warning Messages Displayed on the Control Panel
If the machine is in OFF mode, warning messages are not displayed. Turn ON the machine to visualize the type of warning message on the appliance.
Detergent and Rinse Aid Dispensers and Settings
This machine must be operated with an automatic detergent feeder and, if applicable, an automatic chemical sanitizer feeder, including a visual means to verify that detergents and sanitizers are delivered or a visual or audible alarm to signal if detergents and sanitizers are not available for delivery to the respective washing and sanitizing systems. Please see instructions for electrical and plumbing connections located in this manual and in the feeder equipment manual.
The level in the detergent or rinse aid tank must not get empty or filled with corrosive or inadequate products. The warranty does not cover damages caused by improper use of dispenser. The dispenser is calibrated at manufacturer site: dispenser settings after installation must be performed by a qualified technician.
Maintenance
Descale the boiler, the internal surface of the tank and the appliance water piping once or twice a year.
Descale the rinse and wash jets every month using vinegar or a descaling agent.
The internal hose of the rinse aid and detergent peristaltic dispenser should undergo periodic maintenance (once or twice a year).
Clean solenoid valve filter by removing it from the inside of the valve and unplugging the water inlet tube.
Uninstall (Long period of Inactivity)
Machine can be taken out of operation only by trained technicians authorized for the purposes
Note: Please see Owner's Manual.

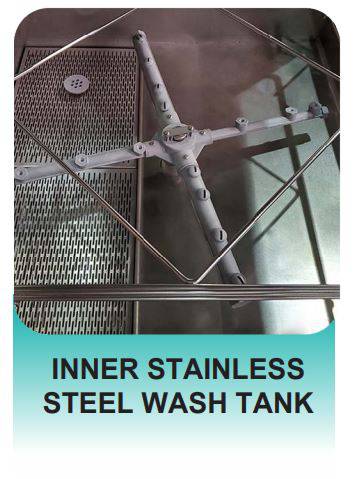

- Body, external housing, wash tank and all chassis component in brushed stainless steel - type AISI 304 16 gauge
- Upper and lower wash and rinse jets on revolving arms constructed of reinforced fiberglass; easy to remove and clean without the need for tools

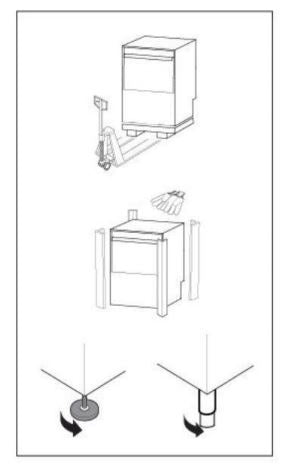

- Adjustable bullet-style feet
- Safety two-way automatic micro-switch on the door controlling the operation of the wash motor-pumps
- Independently-operated heating elements alternating between booster and wash tank
- Alternating heating resistors reducing maximum absorption thereby reducing energy costs
- Door opening with overall clearance of 16.75 in. (425 mm) with ergonomic door handle
- New dFilter system®
- Automatic fill and water level regulation of the wash tank
- Wash pumps protected with double scrap filters easy to remove for quick cleaning and proper maintenance
- Machine can be installed either as an in-line or corner application with simple field modification

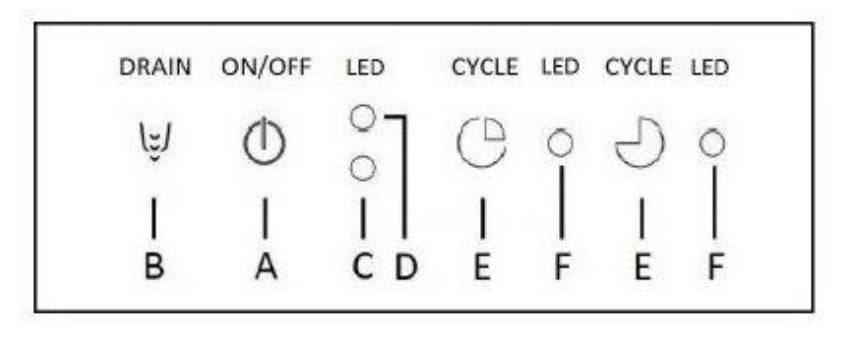

- Front mounted control panel with digital temperature displays
| Specifications | |
| Equipment type | Dishwashers |
| Brand | Jet-Tech |
| Rack capacity | 19.75" x 19.75" (500 mm x 500 mm) |
| Total cycle | Two cycles (2-3 Min) Rinse (12-15 Sec) |
| Hourly production | up to 30 racks/hr |
| Wash tank capacity | 5.25 U.S. gallons (21 Liters) |
| Booster capacity | 2.62 U.S. gallons (10 Litres) |
| Wash temperature | 150°F (65°C) minimum / controlled electronically |
| Final rinse temperature | 185°F - 194°F (85°C - 90°C) minimum / controlled electronically |
| Incoming water temperature | Minimum 122°F (50°C) |
| Water consumption per cycle @ 30 psi | 0.85 U.S. Gallons (2.7 Liters) |
| Washing pump power | 1 H.P. |
| Power supply | 208-240V/60Hz (Single phase) |
| Tank heating element | 4.0 KW |
| Booster heating element | 4.0 KW |
| Maximum power rating | 4.8 KW - 19.8 to 22.8A |

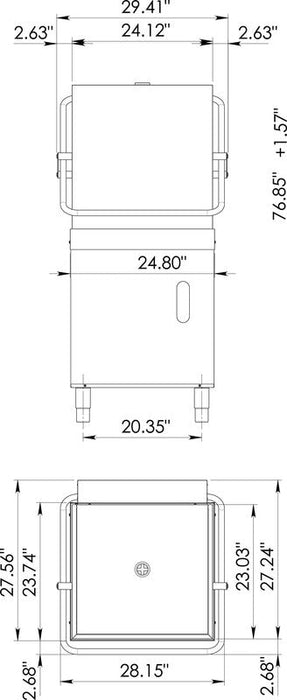

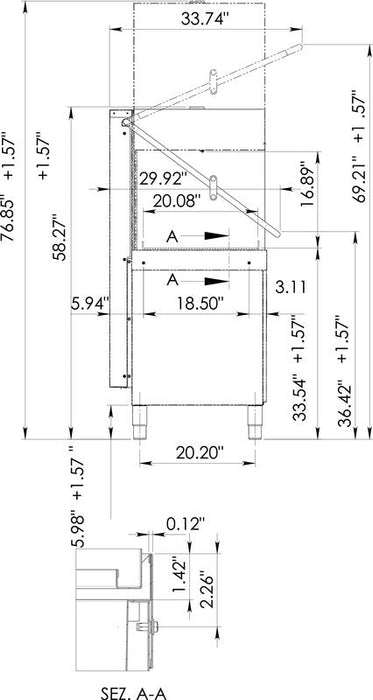

| Dimensions | |
| Width | 29.41" |
| Height | 76.85" |
| Depth | 33.74" |
| Weight | 308 lbs. |
