Jet-Tech EV18 High-Temp Undercounter Dishwasher
PRODUCT DESCRIPTION AND SPECIFICATIONS
Jet-Tech EV18 High-Temp Undercounter Dishwasher
The Jet-Tech EV18 High-Temp Undercounter Dishwasher is a durable and efficient solution for your residential or commercial dishwashing needs. With high-temperature water and powerful jets, this dishwasher delivers superior cleaning results while also being compact enough to fit under your counter. Benefit from time and energy savings with this expertly designed dishwasher.
Standard equipment includes:
- One open combination rack
- One peg dish rack 19.75" x 19.75" (500 mm x 500 mm)
Optional accessories:
- Pressure reducing valve (PRV) kit
- Stainless steel stand (12" high)
- Drain water tempering kit
Warranty
1-year parts and labor.
Water Connection
The Shut-off valve must be a single direction, spool, sphere, or lid control type, which can shut the water supply off quickly and totally. The water pressure and flow must conform to the data diagram supplied with each machine.
Water Supply Pressure
Check that dynamic water supply pressure, measured between the appliance and the main, is between 200 and 400kPa. If the pressure is too high, fit a suitable pressure reducer on the inlet pipe. If the pressure is low, install an additional external pressure motor pump.
If there is a high concentration of mineral residues in the water or high conductivity, we recommend installing the demineralization filter for 5/7° f.
Models Gravity Drainage
The drainage line must comprise a sump pit, free flow, of a proper size capable of disposing twice the water flow indicated on the data diagram. It must be close to the drain pipe of the machine without bending, stretching, or jointing the pipe.
Models With Drain Pump
Position the outlet pipe at a height of anywhere between 30" and 40" from the floor.
Electrical Connection
All contacts must be mechanically open, ground line included, min. distance between contacts 3 mm, with magnetic overload or fuses, calibrated for a max, sustained current in agreement with the machine data plate. It must be installed outside the machine but close to it. It must feed only one machine at a time. The machine cannot be connected to mains using adapters, plugs, cables, or cable extensions not properly sized and adequate to the machine’s power requirements.
WARNING: The manufacturer is not responsible for damages or injuries caused for improper grounding. The ground and the electrical connections should be in compliance with national regulations.
The grounding point on the machine must be connected to the nearest appliance terminal according to Safety Standards.
Warning Messages Displayed on the Control Panel
If the machine is in OFF mode, warning messages are not displayed. Turn ON the machine to visualize the type of warning message on the appliance.
Detergent and Rinse Aid Dispensers and Settings
This machine must be operated with an automatic detergent feeder and, if applicable, an automatic chemical sanitizer feeder, including a visual means to verify that detergents and sanitizers are delivered or a visual or audible alarm to signal if detergents and sanitizers are not available for delivery to the respective washing and sanitizing systems. Please see the instructions for electrical and plumbing connections located in this manual and in the feeder equipment manual.
The level in the detergent or rinse aid tank must not get empty or filled with corrosive or inadequate products. The warranty does not cover damages caused by improper use of the dispenser. The dispenser is calibrated at the manufacturer site: dispenser settings after installation must be performed by a qualified technician.
Maintenance
Describe the boiler, the internal surface of the tank, and the appliance water piping once or twice a year.
Descale the rinse and wash jets every month using vinegar or a descaling agent.
The internal hose of the rinse aid and detergent peristaltic dispenser should undergo periodic maintenance (once or twice a year).
Clean the solenoid valve filter by removing it from the inside of the valve and unplugging the water inlet tube.
Uninstall (Long period of Inactivity)
The machine can be taken out of operation only by trained technicians authorized for the purposes
Note: Please see the Owner's Manual.
- Body, external housing, wash tank, and all chassis components in brushed stainless steel 304 18/10

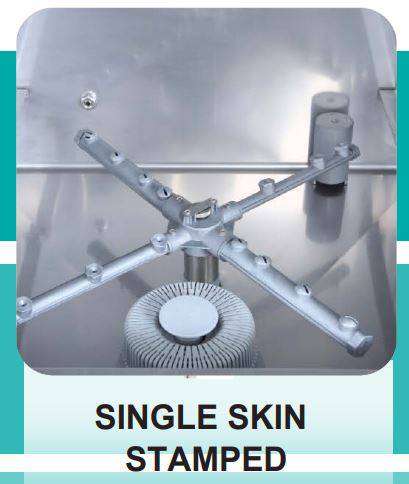

- Upper and lower wash and rinse revolving arms constructed of reinforced fiberglass; easy to remove and clean without the need for tools
- Integrated AISI 18/10 stainless steel booster with insulated lining
- Safety micro-switch on the door to interrupt wash pump action
- Independently operated heating elements alternating between booster and wash tank
- Alternating heating elements reduce maximum absorption thereby reducing energy costs
- Automatic fill and water level regulation of the wash tank
- Wash pump protected with filter plus additional shield for tank element

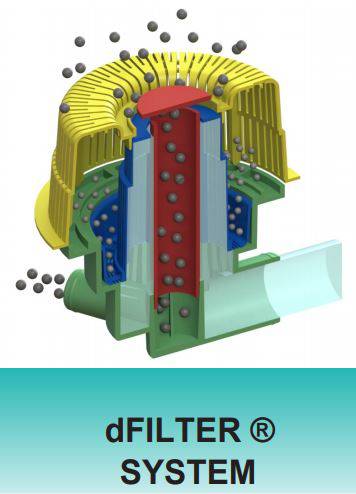

- New filter system®
- Door-opening with an overall clearance of 13.4" (340 mm)
- The slide-out integrated front control panel provides easy access for the service
- Electronic Temperature gauges displaying wash and rinse temperatures
- Thermostatic control of wash and rinse temperatures ensure optimum results
- Unit equipped with: automatic drain pump, automatic peristaltic pumps for both liquid detergent and rinse additive
| Specifications | |
| Equipment type | Dishwashers |
| Brand | Jet-Tech |
| Rack capacity | 19.75" x 19.75" (500 mm x 500 mm) |
| Complete operating cycle | Two programmable cycles (1-3 Min) |
| Wash tank capacity | 7.25 U.S. gallons (5.50 U.S. Ltl) |
| Wash tank element | 2800 watts |
| Wash temperature | 150°F (65°C) |
| Booster capacity | 2.20 U.S. gallons (8 litres) |
| Booster element | 4000 watts |
| Booster (water) temperature | 185°F - 194°F (85°C - 90°C) |
| Power supply | 208-240/60/1 |
| Amperage | 22.3 amps |
| Maximum power rating | 4550 watts |
| Water consumption | 0.79 U.S. gallons per cycle (3 litres) |
| Water consumption per hour | 25.9 U.S. gallons (98 litres max.) |
| Water supply | 1/2“ hot water supply 140°F / 60°C |
| Recommended pressure | 25 p.s.i. (dynamic) (PRV may be required) |
| Water inlet connection | 3/4" male hose connector (hose included) |
| Drain connection | 1" ID (25.4mm) max height 36" (915mm) (hose included) |
| Dimensions | |
| Width | 22.62" |
| Height | 33.5" |
| Depth | 23.75" |
| Shipping Weight | 165 lbs. |
