Hydra-Kool KFM-OF-100-S Fresh Meat Open Front Deli Case
PRODUCT DESCRIPTION AND SPECIFICATIONS
Hydra-Kool KFM-OF-100-S Open Front Deli Case Designed for Fresh Meat
The Hydra-Kool KFM-OF-100-S offers a multiplexible, self-serve solution for delis and meat departments. With a digital controller and stainless steel interior, this display case is both efficient and durable. The tempered glass front and sides, along with the adjustable feet and PVC coated exterior, make it a stylish and functional addition to any store. ETL-Santiation and cETLus approvals ensure quality and safety.
- Case holds 33F to 40F
- Low velocity forced air refrigeration maintains high humidity
- Tempered front & side glass
- Cases can be multiplexed
Optional Features
- Stainless steel exterior
- Other colors available

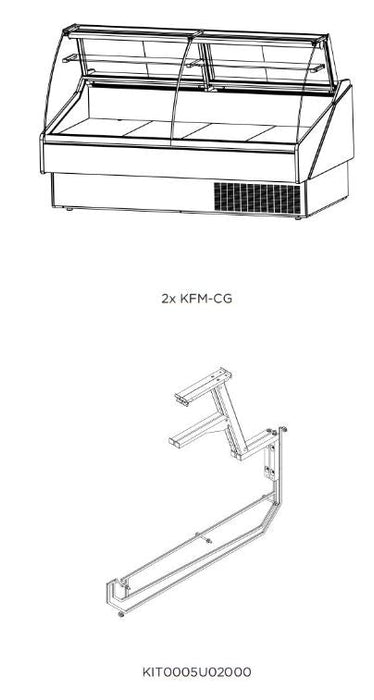

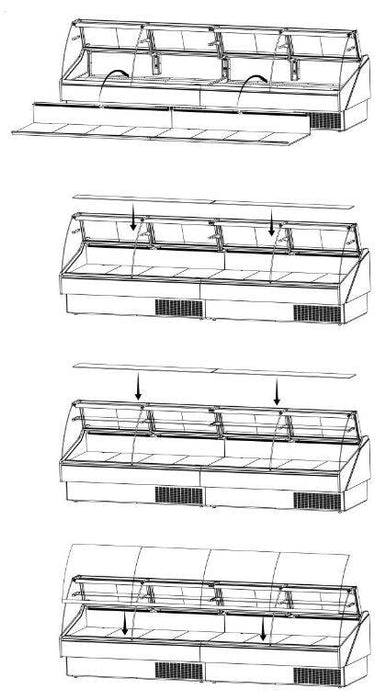

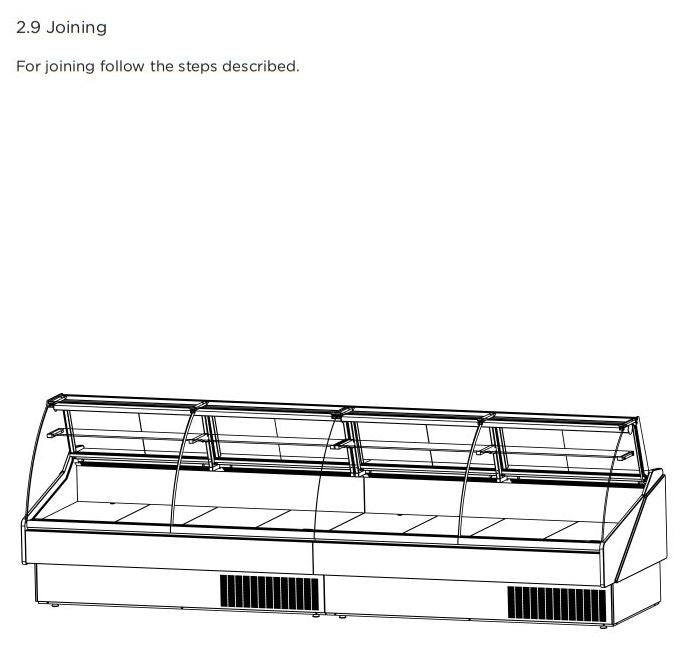

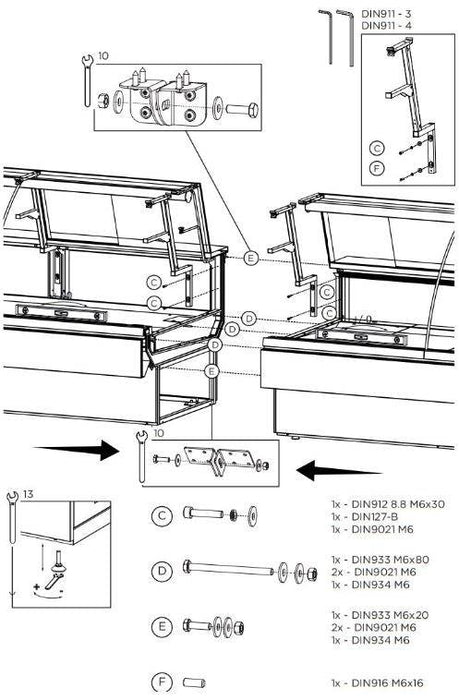

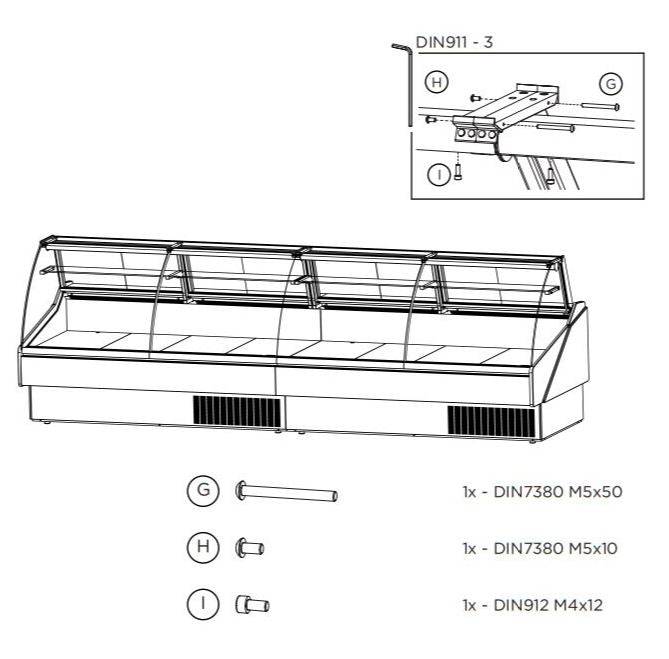

- Joining Kit
- Partition
- Condensate evaporating pan for remote cases
- White epoxy bi-level wire racks 2 or 3 level step sham
- Scale stand with receptacle
- Knife support
- Cutting board
- Casters add 4-3/8"to height
- Stainless steel legs are adjustable from 5-1/8"to 7-5/8"/li>
Notes

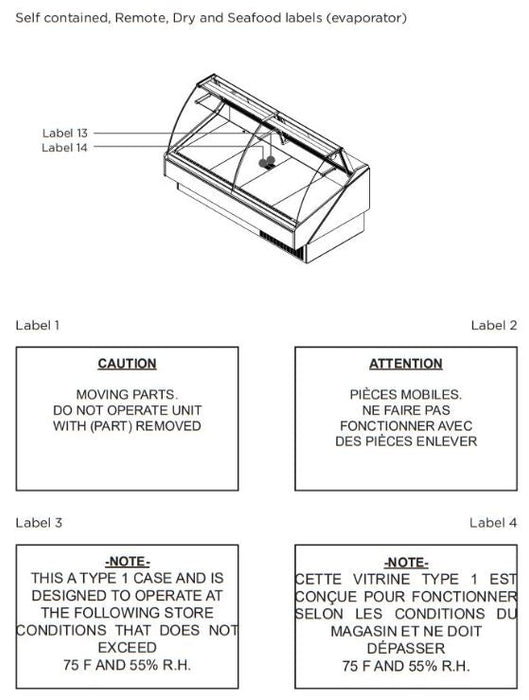

- These cases are engineered to operate in locations not exceeding 75F and 55% R.H.
- These cases are designed to operate using R404a refrigerant.
- Alternate refrigerants available by special order.
- O.A. length includes (2) ends at 1-1/2"each.

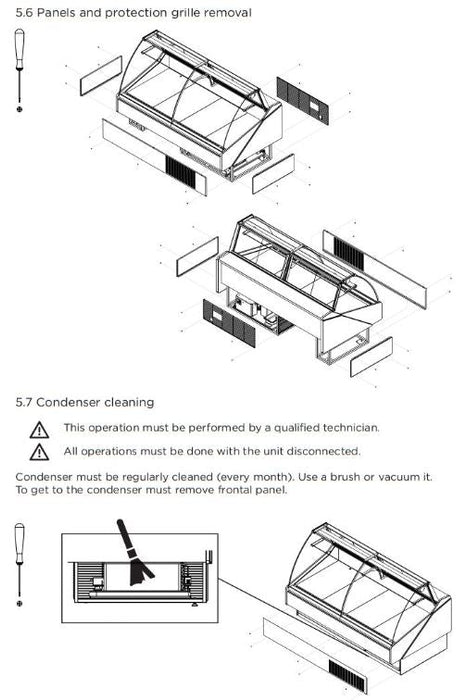

- Ventilation grills at front and back cannot be blocked.
- B.T.U. are calculated at 14F (evaporator) and 90F (ambient).
- Remote cases are provided with an expansion valve and a liquid solenoid for pump down cycle.
- On remote cases, if no floor drain is provided, a condensate evaporating pan must be ordered and 3.3 amps added to the amp load.
- Remote cases must be hard wired no plugs.
- CFC free injected foam insulation
- Silver colored PVC coated steel front panel
- PVC coated steel gray interior
- Black steel kick plate
- Stainless steel rear work bench
- Foamed polystyrene black end panels

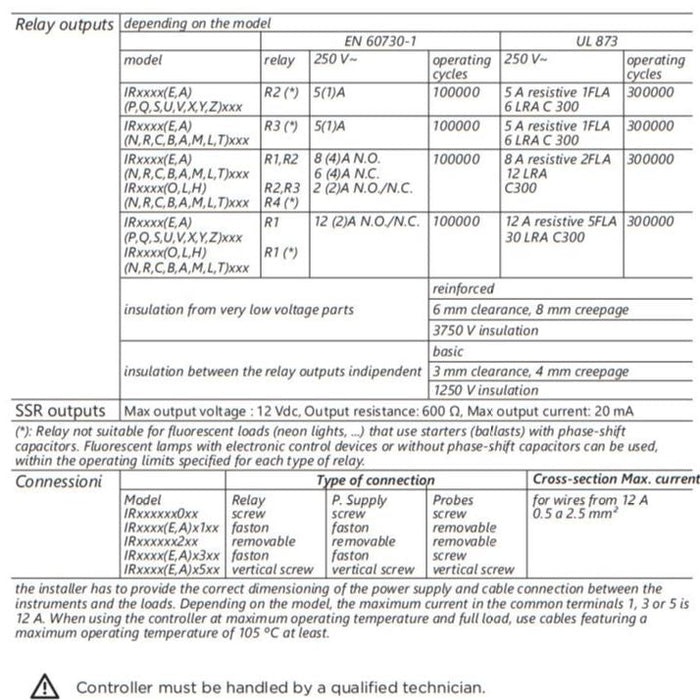

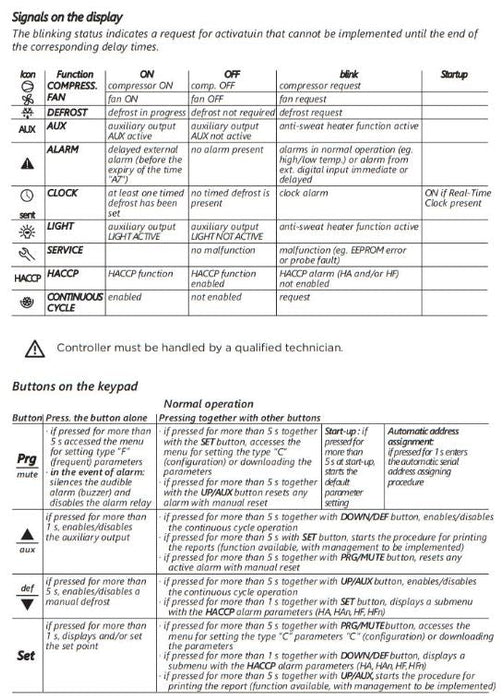

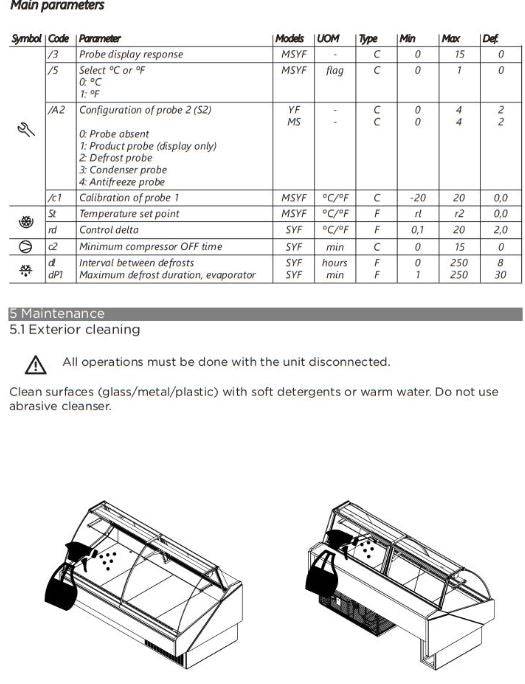

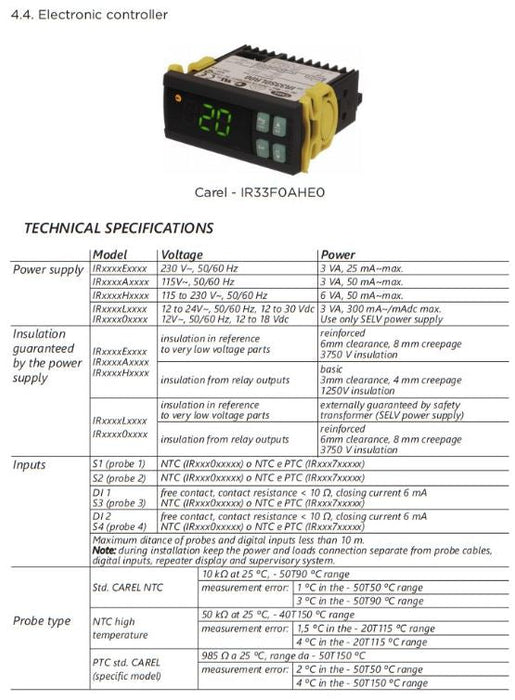

- Temperature and defrost regulated by a digital controller

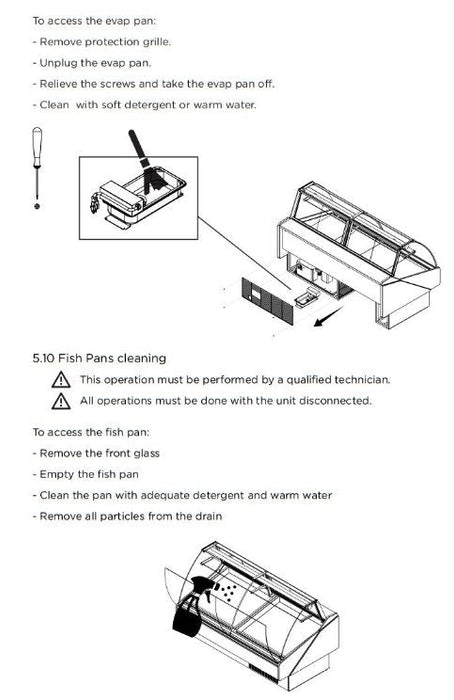

- Removable condensate evaporating pan for easy cleaning on self contained units

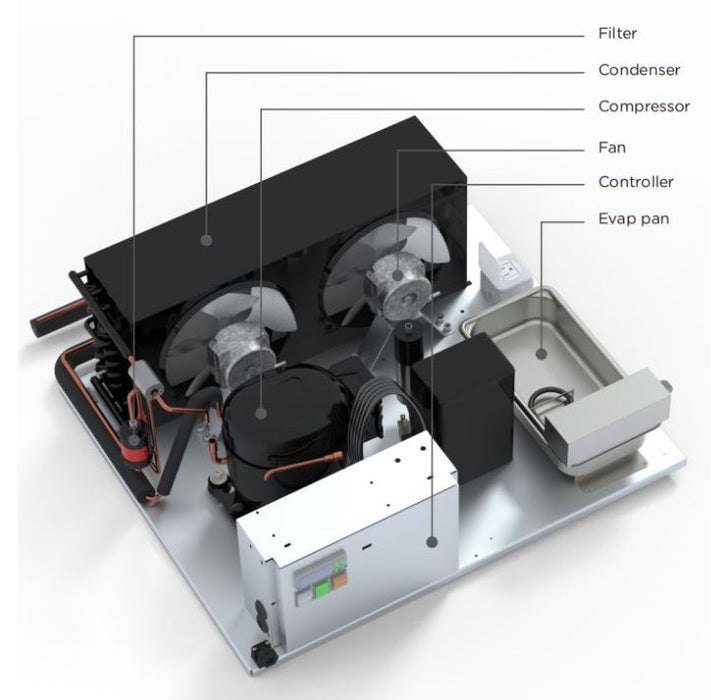

- Slide out condensing unit on self-contained units
- Digital thermometer
- Levelling feet
Warranty:
One year parts and labor with an additional four years on the compressor (part only)
Specifications | |
Equipment Type | Deli Cases |
Brand | Hydra Kool |
Model | KFM-OF-100-S |
O.A. Length (inches) | 101.2"/td> |
Volume FT3 | 16.00 |
Electrical | 115 V |
Compressor (H.P) | 3/4 |
Compressor (F.L.A) | 16 |
Lights Fans HTRS | 1.30 |
EVAP PAN | 3.3 |
Total Amps | 20.63 |

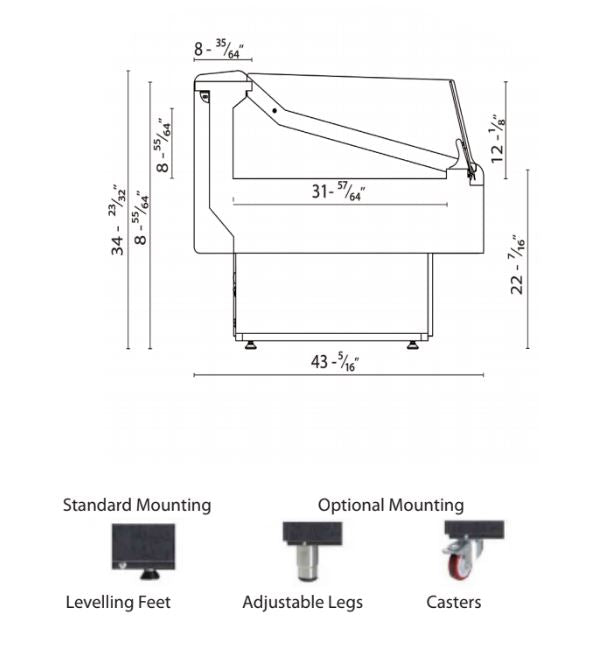

Dimensions | |
Width | 101.2" |
Height | 33.5" |
Depth | 43.4" |
Shipping Weight | 844 lbs. |
