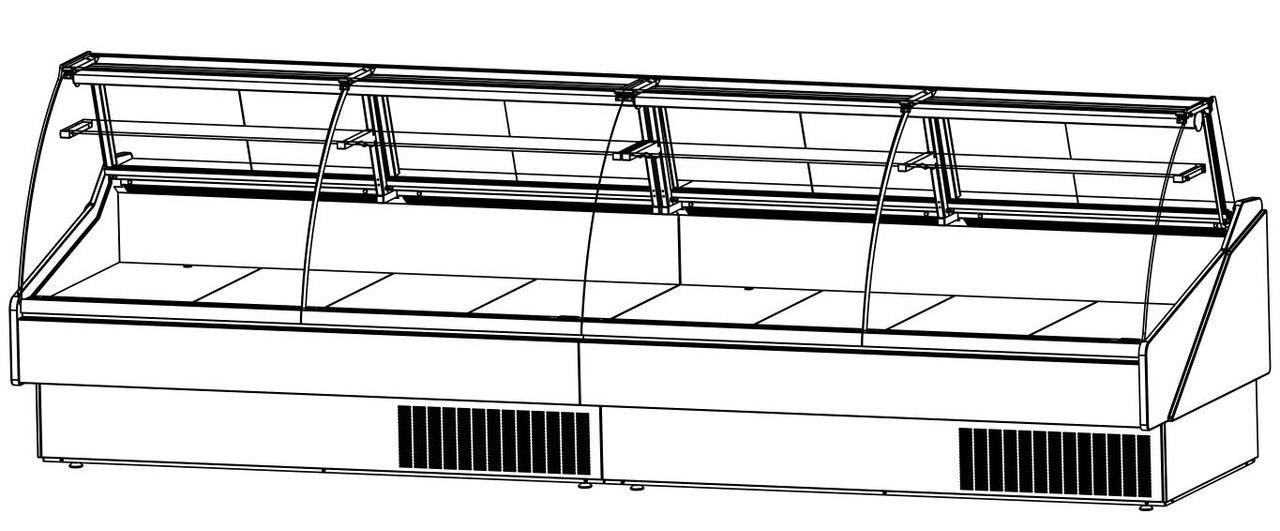

Hydra-Kool KFM-CG-100-S Fresh Meat Curved Glass Deli Case
![trust](https://cdn.shopify.com/s/files/1/0753/0669/7020/files/trust_image.jpg?v=1686735983)
PRODUCT DESCRIPTION AND SPECIFICATIONS

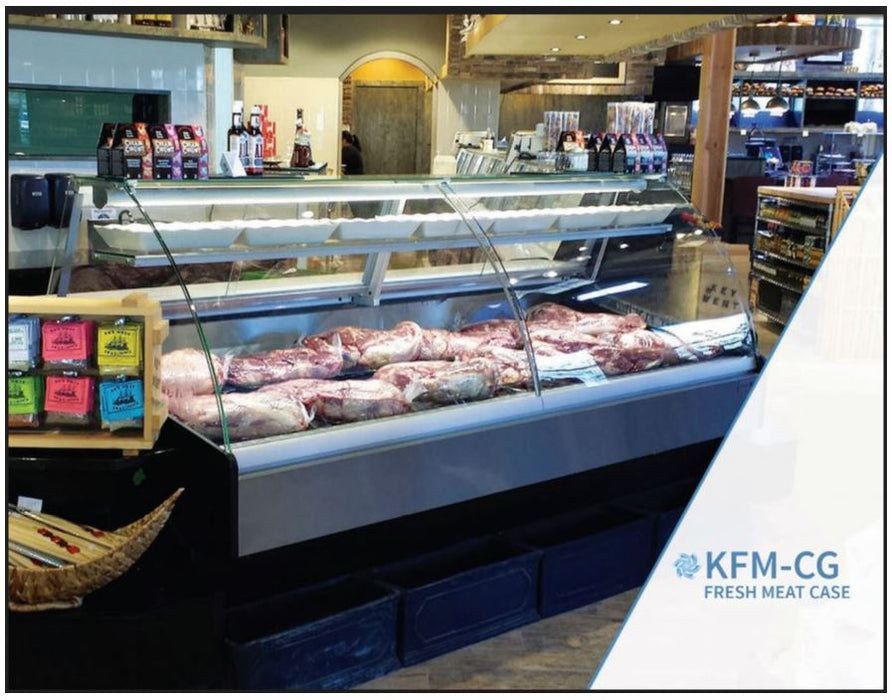

Hydra-Kool KFM-CG-100-S Curved Glass Deli Case Designed for Fresh Meat
The Hydra-Kool KFM-CG-100-S Fresh Meat Curved Glass Deli Case delivers efficient service with its tilting front glass and sliding rear glass doors. Its LED lighting and stainless steel interior create an attractive display while the PVC coated front panel and adjustable feet ensure durability and stability. ETL-Sanitation and cETLus certified for safety and sanitation assurance.
- Case holds 33F to 40F
- Low velocity forced air refrigeration maintains high humidity

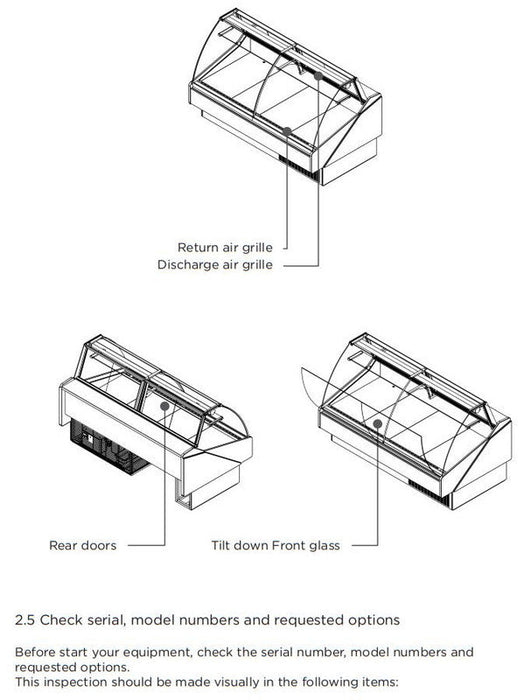

- Tempered tilt out curved front glass
- Tempered side glass and rear sliding doors
- Cases can be multiplexed
Optional Features:
- Stainless steel exterior
- Lift up front glass
- Other colors available

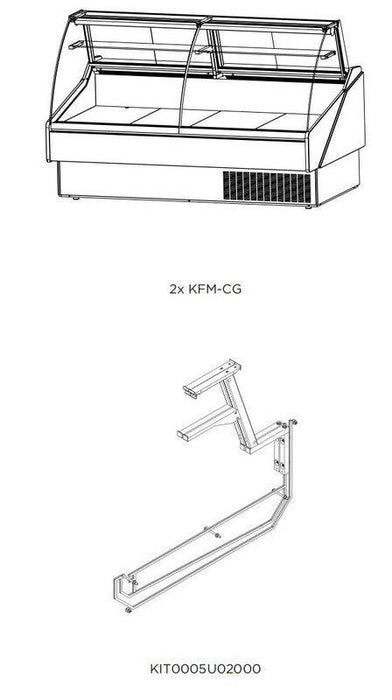

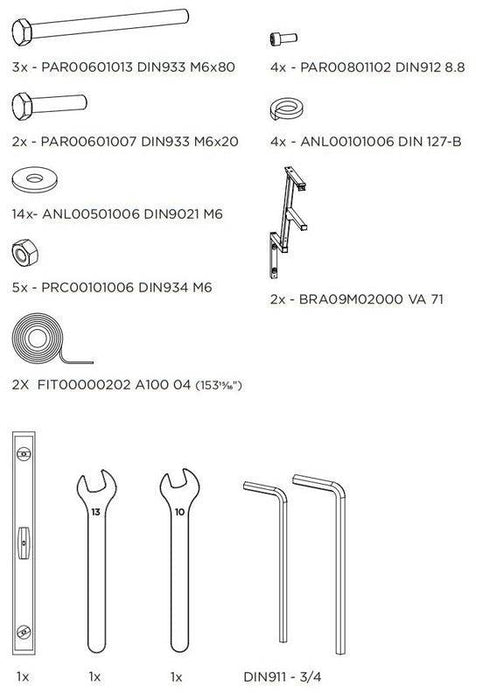

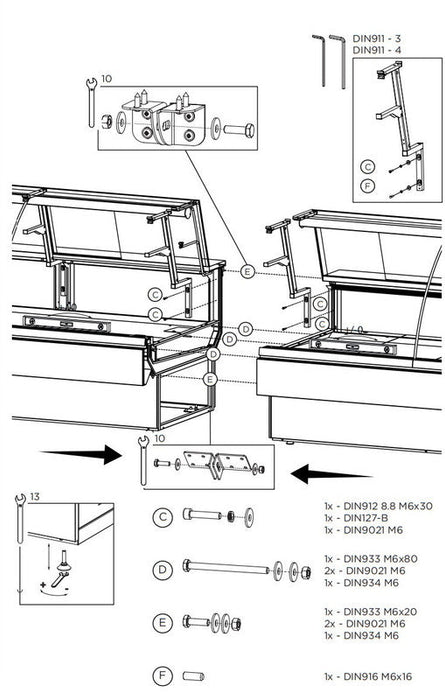

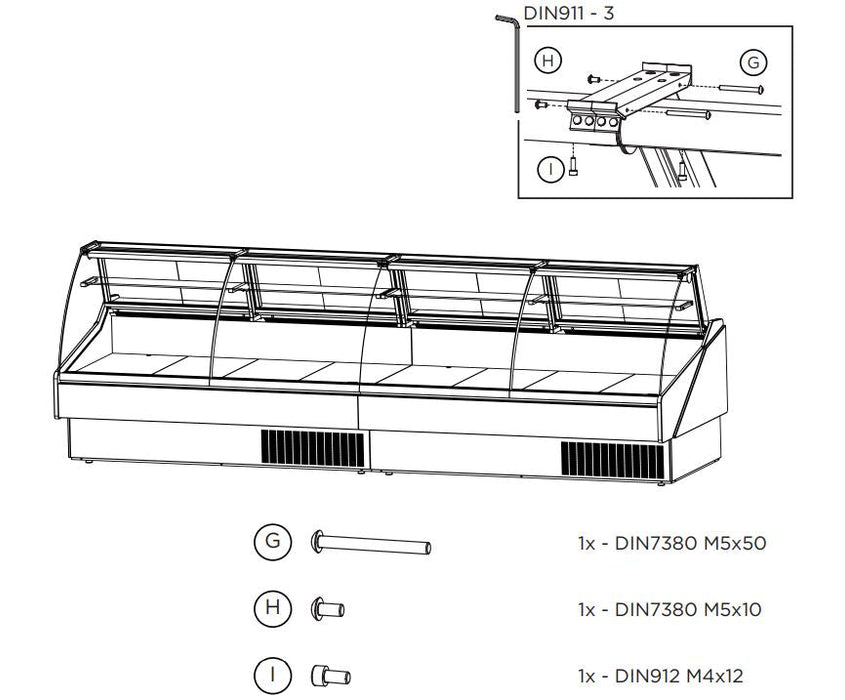

- Joining Kit
- Partition
- Condensate evaporating pan for remote cases
- White epoxy bi-level wire racks; 2 or 3 level step sham
- Scale stand with receptacle
- Cutting board
- Knife Support
- Casters add 4-3/8??to height
- Stainless steel legs are adjustable from 5-1/8??to 7-5/8??/li>
Notes:
- These cases are engineered to operate in locations not exceeding 75F and 55% R.H.
- These cases are designed to operate using R404a refrigerant.
- Alternate refrigerants available by special order.
- O.A. length includes (2) ends at 1-1/2"each.
- Ventilation grills at front and back cannot be blocked.
- B.T.U. are calculated at 14F (evaporator) and 90F (ambient).

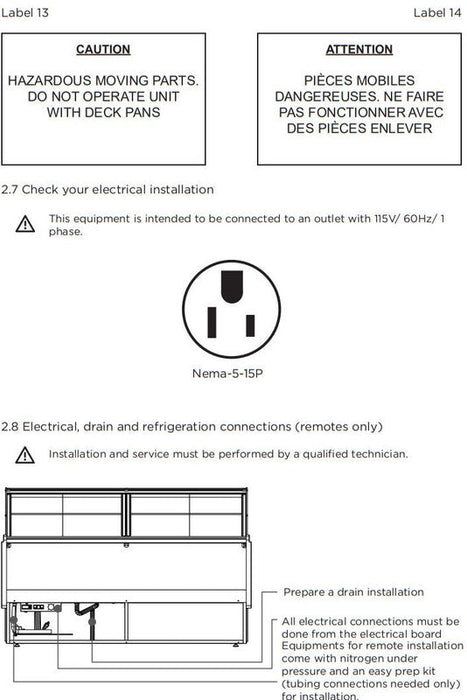

- Remote cases are provided with an expansion valve and a liquid solenoid for pump down cycle.
- On remote cases, if no floor drain is provided, a condensate evaporating pan must be ordered and 3.3 amps added to the amp load.
- Remote cases must be hard wired no plugs.
- Specifications are subject to change without notice.
- CFC free injected foam insulation
- Stainless steel interior
- Stainless steel rear work bench
- Silver colored PVC coated steel front panel
- Black steel kick plate
- Foamed polystyrene black end panels
- Tempered tilt-forward front glass

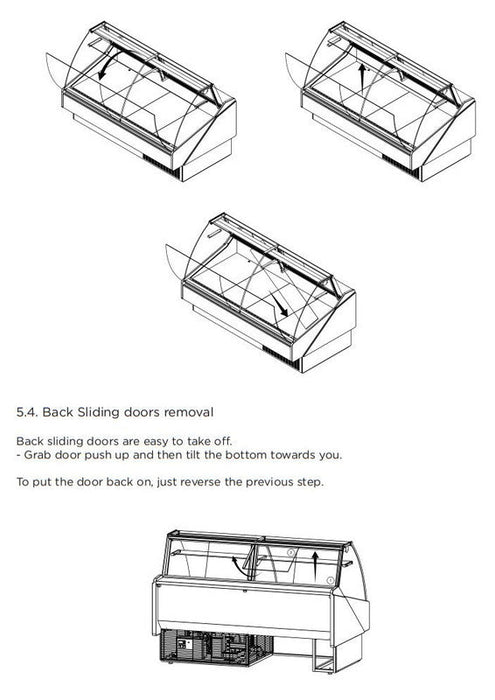

- Removable rear tempered glass sliding doors

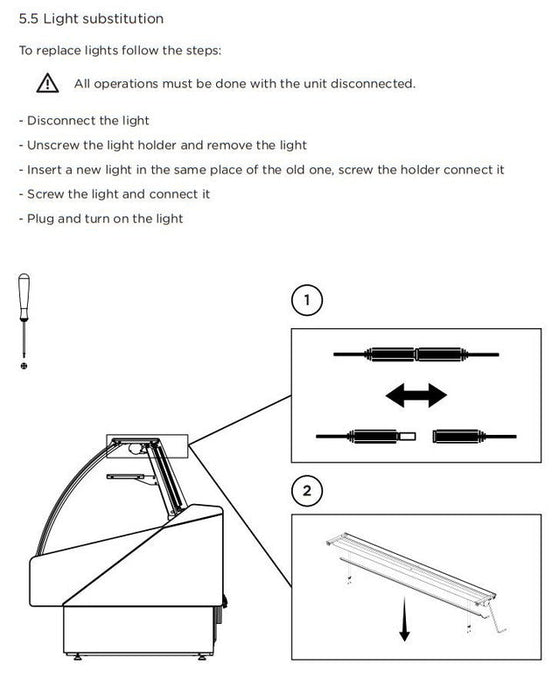

- LED lighting in canopy

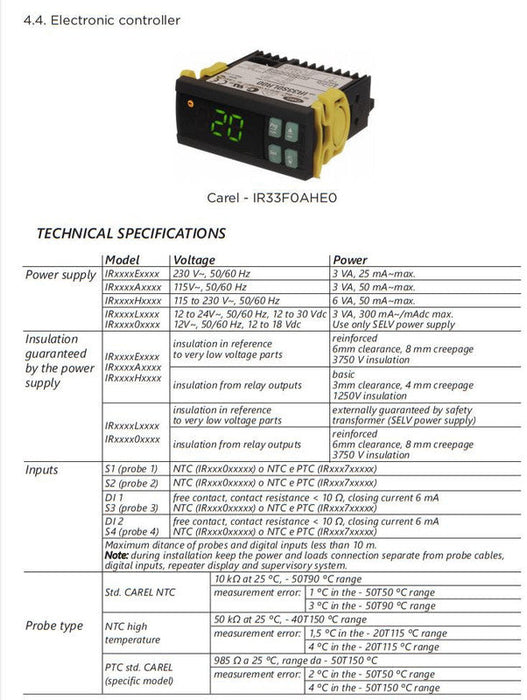

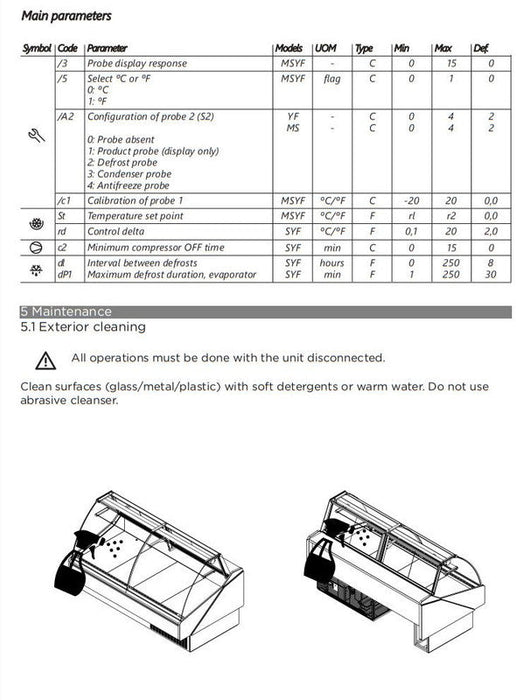

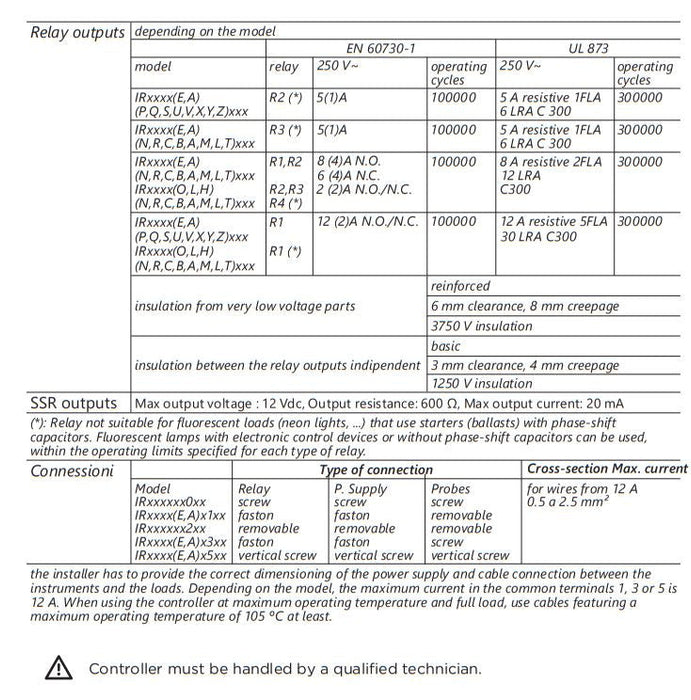

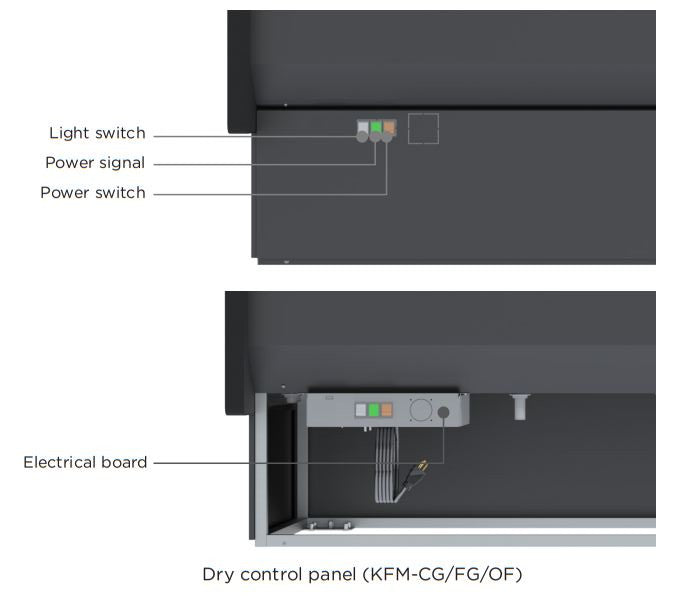

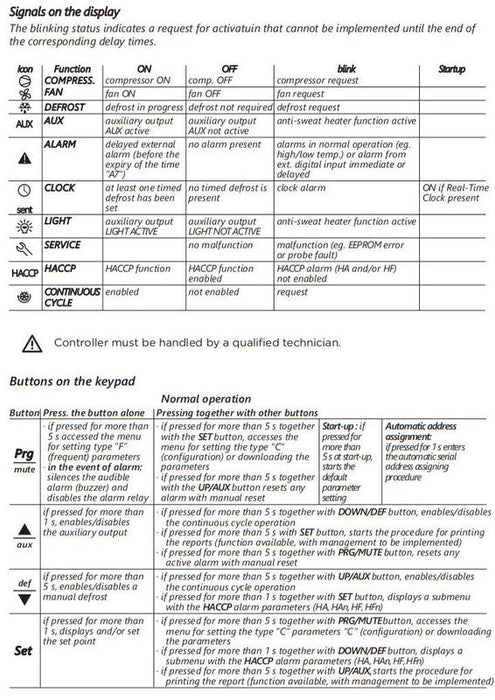

- Temperature and defrost regulated by a digital controller

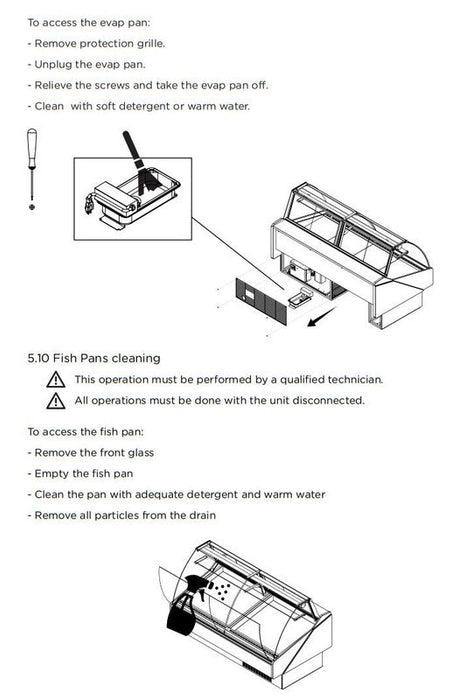

- Removable condensate evaporating pan for easy cleaning on self contained units

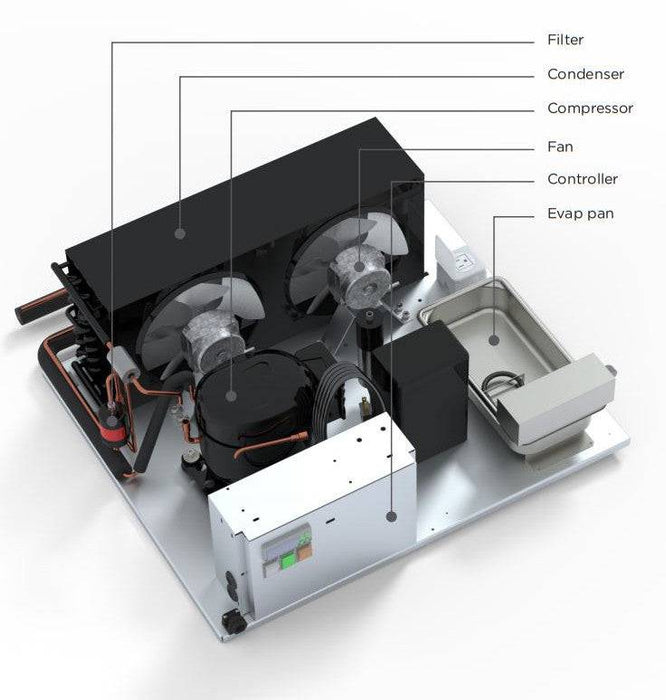

- Slide out condensing unit on self-contained units
- Digital thermometer
- Levelling feet
- Designed for Fresh Meat
Warranty:
One year parts and labor with an additional four years on the compressor (part only)
Specifications | |
Equipment Type | Deli Cases |
Brand | Hydra Kool |
Model | KFM-CG-100-S |
O.A. Length (inches) | 101.2??/td> |
Volume FT3 (Front) | 32.54 |
Electrical | 115 V |
Compressor (H.P) | 3/4 |
Compressor (F.L.A) | 16 |
Lights Fans HTRS | 1.81 |
EVAP PAN | 3.3 |
Total Amps | 21.14 |

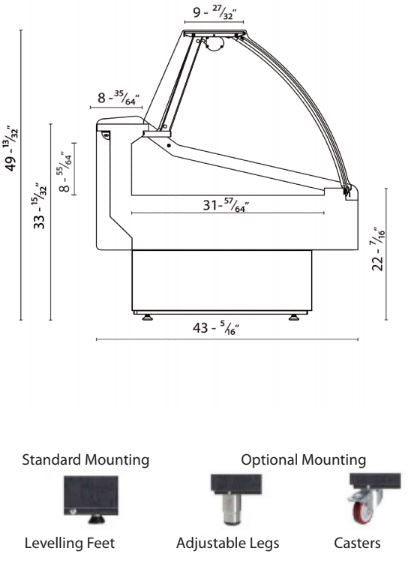

Dimensions | |
Width | 101.2" |
Height | 49.4" |
Depth | 43.4" |
Shipping Weight | 974 lbs. |
