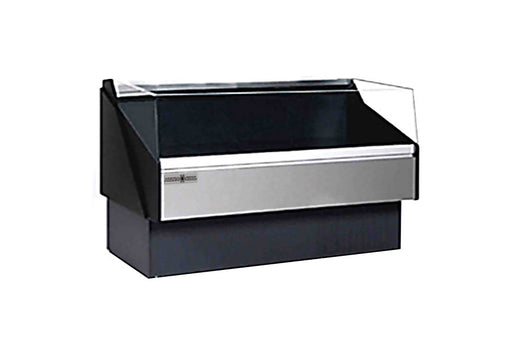

Hydra Kool KPM-OF-60-S Open Front Deli Case
PRODUCT DESCRIPTION AND SPECIFICATIONS
The Hydra-Kool KPM-OF-60-S Open Front Deli Case Designed for Deli Products and Packaged Meat
The Hydra-Kool KPM-OF-60-S Open Front Deli Case is expertly designed for deli products and packaged meat. Its open front allows for easy access and display, while keeping your products fresh and cool. With its sleek design, this deli case is perfect for any deli or grocery store looking to showcase their products in a professional and efficient manner.
- Case holds 33F to 40F
- Forced air refrigeration
- Tempered front and side glass
- Refrigerated rear storage
- Cases can be multiplexed
- Designed for deli products, fresh meat and packaged meat
Optional Features
- Stainless steel exterior and / or interior
- Other colors available
- White epoxy bi-level wire racks; 2 or 3 level step sham
- Scale stand with receptable
- Cutting Board
- Knife Support
- Joining Kit
- Partition
- Condensate evaporating pan for remote cases
- Casters add 4-3/8" to height
- Stainless steel legs are adjustable from 5-1/8" to 7-5/8" /li>
Notes
- These cases are engineered to operate in locations not exceeding 75F and 55% R.H.
- These cases are designed to operate using R404a refrigerant.
- Alternate refrigerants available by special order.
- O.A. length includes (2) ends at 1-1/2" each.
- Ventilation grills at front and back cannot be blocked.
- B.T.U.?? are calculated at 14F (evaporator) and 90F (ambient).
- Remote cases are provided with an expansion valve and a liquid solenoid for pump down cycle.
- On remote cases, if no floor drain is provided, a condensate evaporating pan must be ordered and 3.3 amps added to the amp load.
- Remote cases must be hard wired ??no plugs.
- Tempered side glass
- CFC free injected foam insulation
- Silver colored PVC coated steel front panel
- PVC coated steel gray interior
- Black steel kick plate
- Foamed polystyrene black end panels
- Rear work bench
- Temperature and defrost regulated by a digital controller
- Removable condensate evaporating pan for easy cleaning on
- self contained units
- Slide out condensing unit on self-contained units
- Digital thermometer
- Levelling feet
- Stainless steel interior and / or exterior
- Other colors available
- White epoxy bi-level wire racks
- 2 or 3 level step sham
- Scale stand with receptacle
- Cutting board
- Knife support
- Joining Kit Partition
- Condensate evaporating pan
- Casters add 4-3/8??to height
- Stainless steel legs are adjustable from 5-1/8" to 7-5/8" /li>
Warranty:
One year parts and labor with an additional four years on the compressor (part only)
Specifications | |
Equipment Type | Deli Cases |
Brand | Hydra Kool |
Model | KPM-OF-60-S |
O.A. Length (inches) | 60 |
Volume FT3?(Front) | 9.29 |
Volume FT3?(Rear) | 5.33 |
Electrical | 115V |
Compressor (H.P) | 1/2 |
Compressor (F.L.A) | 9.6 |
Compressor (L.RA) | 49 |
LIGHTS Fans HTRS | 0.83 |
EVAP Pan | 3.3 |
Total Amps | 14.08 |
Dimensions | |
Width | 60" |
Height | 33.5" |
Depth | 43.4" |
Shipping Weight | 630 lbs. |
