Jet-Tech F-14 Multi Purpose Countertop Warewasher
PRODUCT DESCRIPTION AND SPECIFICATIONS

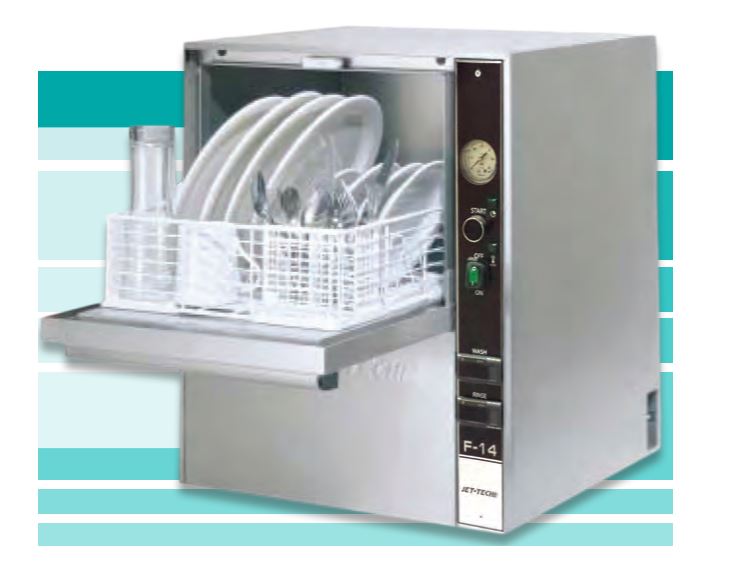

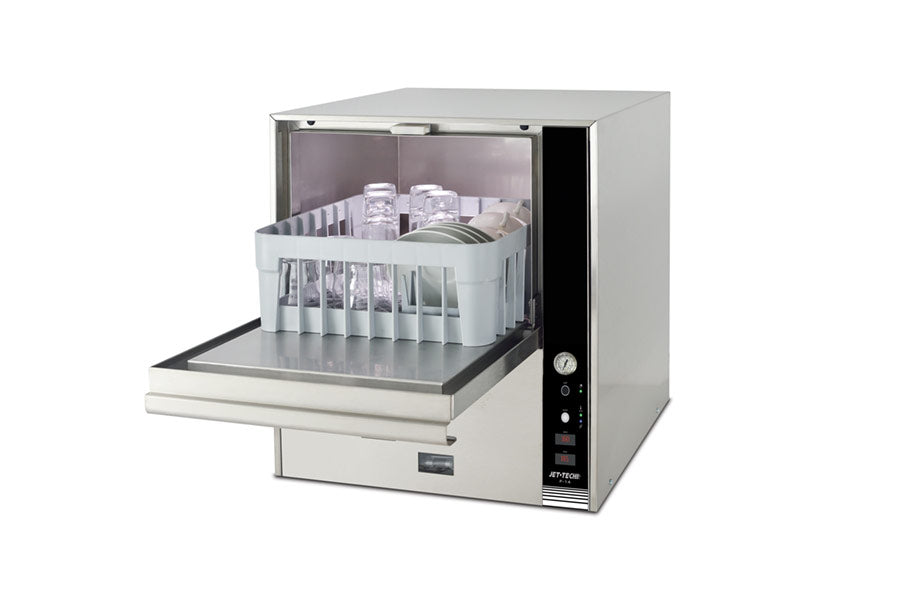

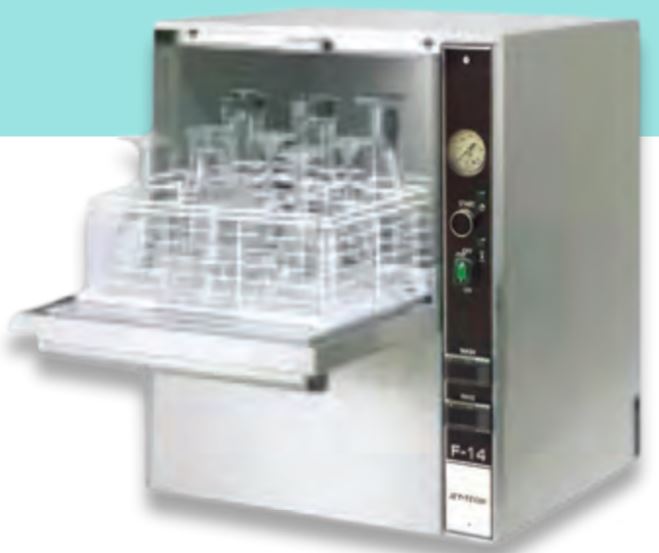

The Jet-Tech F-14 Multi-purpose Countertop Warewasher
The Jet-Tech F-14 Multi-purpose Countertop Warewasher is the perfect solution for a wide range of commercial spaces. Its compact size allows it to fit in a variety of locations, making it ideal for smoothie and ice cream shops, lounges, guest houses, and more. With this versatile warewasher, you can easily keep your dishes and glassware sparkling clean.
Ideally suited for smoothie and ice-cream shops, small spaces, counter-top bars, mobile carts, food courts, lounges, boats, caterers, dental offices, day-care operators, guest houses, room service, espresso bars, kiosks, laboratories, and much more!!
Use as an assorted Warewasher: Accessory No. 30035, 15-place insert for saucers and/or small plates.
Accessory No. 30026, Cutlery Holder
Use as a Glasswasher: Accessory No. 30132, 9-place insert for glassware. Note: Optional accessory No. 30133, 16-place insert for glassware

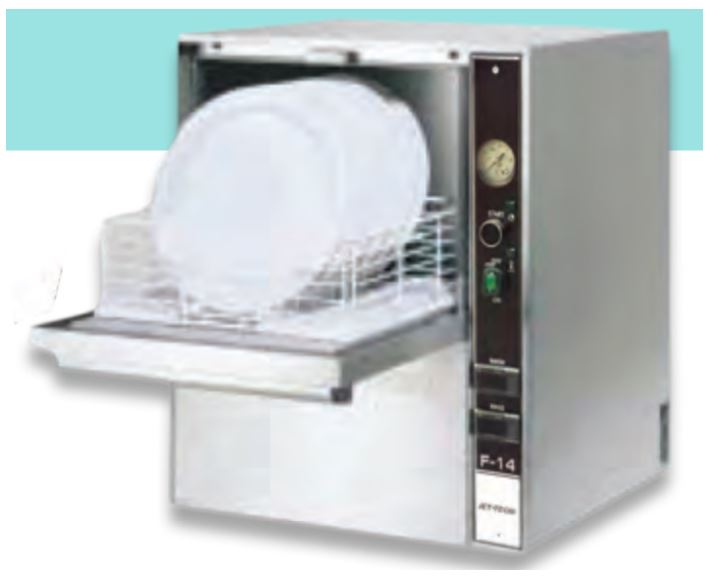

Use as a Dishwasher: Accessory No. 30037, 6-place insert for plates up to 10 1/2"" in diameter.

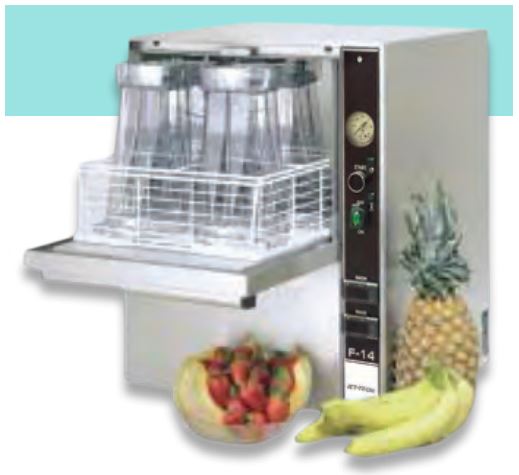

Use for Blender Containers: Accessory No. 30131, 4-place insert.
Accessories
F-14 supplied with:
- (1) open rack - 13.75" x 13.75" (350 mm. X 350 mm.)
- (1) 4-place insert #30131 for blender containers
- (1) 9-place insert #300132 for glassware
- (1) 6-place insert #30037 for plates up to 10.5" diameter
- (1) 15-place insert #30035 for saucers and/or small plates
- (1) cutlery holder #30026
Optional
- 16-place insert #30133 for glassware
- Drain water tempering kit
- Pressure reducing valve (PRV)kit
Hourly production
20 racks of various items OR depending on the rack insert used, the following quantities can be washed and rinsed:
- 4-place insert for Blender Containers - 80 / hr.
- 9-place insert for Glassware - 180 / hr.
- 16-place insert for Glassware - 320 / hr.
- 6-place insert for Dishes - 120 / hr.
Connecting your new F-14

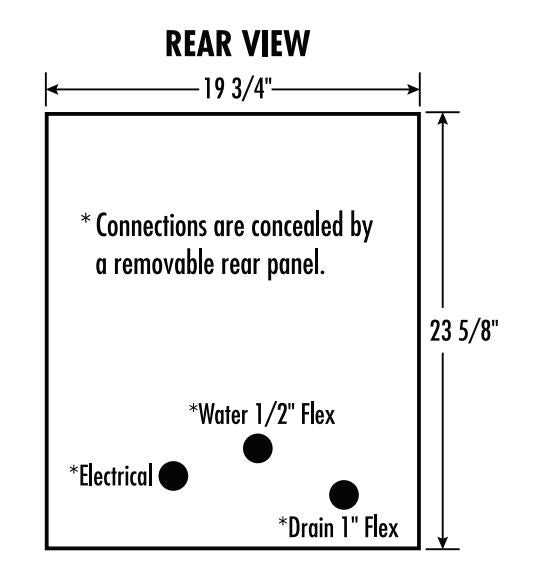

This dishwasher must be installed on a level, rigid, nonflammable surface. Ensure that the machine is level by installing the feet (shipped in the wash tank of the machine) and adjusting the leveling. Be sure to provide adequate space for water, drain, and electrical connections. The rear panel must be removed for the hookups and must be replaced after the connections are made.
Electrical Supply
A 115 Volt - 20 Amp circuit breaker is required for this washer. A power cord with NEMA 5-20 plugs is provided for your convenience.
Water Supply
A 3/4" NPT coupling is required with 30 psi. dynamic pressure. A water pressure regulator* may be required. The water pressure cannot be less than 30 psi or exceed 30 psi. If the water pressure exceeds the prescribed amount, you will get inconsistent washing temperature, and premature failure, and thus may void the warranty.
Incoming water temperature must be 140°F (60°C). An easily accessible shut-off valve is recommended, making installation, service, and maintenance easier. A flexible fill hose is provided to make installation, servicing, and maintenance easier.
Make sure that the water is free from calcium and hard water deposits. For these situations, an inline water cartridge system is highly recommended. Build-up of calcium and lime deposits in the washer may occur and servicing will be required on a more frequent basis which will not be covered by the warranty.
Drain Connection
This washer has a gravity-type drain. Since this unit is a Counter-Type
installation, the flexible drain hose provided should be connected to the drain outlet elbow at the rear of the unit behind the rear access panel; and extended through the side opening directly into a floor drain or sink (see Figure)
Note: All panels must be replaced on the unit when the installation is completed.
DO NOT manually fill the wash tank with water. The dishwasher will fill automatically when the power is turned ON.
- Completely automatic wash and rinse cycles including one programmed at 150°F. (65°C.) and one rinse program at 185°F. (85°C.)
- Built-in automatic detergent pump for consistent results each time
- Built-in automatic rinse-additive pump for sparkling final results
- Body, external housing, wash tank, and all chassis components in brushed stainless steel 304 18/10
- Constructed of insulated double-walled panels for low heat and noise emissions
- Unique and compact size for easy placement on a countertop, stand, or mobile cart
- The door opening is designed to accept items up to a maximum height of 11"
- Integrated stainless steel booster with insulated lining
- Full-width interior scrap screens of durable stainless steel
- Internal screen for protection of motor-pump
- Safety micro-switch on the door to interrupt wash pump action
- Lower revolving wash and rinse arm with lateral upper fixed rinse arms built of fiberglass designed for maximum results and ease of maintenance
- Independently operated heating elements serve to reduce overall energy costs by lowering amperage consumption
- Thermostatic regulated control of both wash and rinse water
- Automatic fill and water level regulation of the wash tank
- Individual digital gauges for both wash and rinse temperatures
- Vertical integrated control panel for simple access and technical maintenance
90 days on labor and 1 year on parts.
| Specifications | |
| Equipment type | Glass Washers |
| Brand | Jet-Tech |
| Rack capacity | 13.75" x 13.75" (350mm x 350 mm) |
| Complete operating cycle | 165 seconds wash and 15 seconds rinse |
| Wash tank capacity | 2.1 U.S. gallons (8 litres) |
| Wash tank element | 1400 watts (1.4 Kw) |
| Wash tank temperature | 150°F (65°C) |
| Booster capacity | 0.53 U.S. gallons (2.0 litres) |
| Booster element | 1400 watts (1.4 Kw) |
| Rinse (water) temperature | 185°F (85°C) |
| Maximum power absorption | 1500 watts (1.5 Kw) |
| Wash motor-pump | 100 watts |
| Power supply | 110 Volt / 60 Hz (power cord with NEMA 5-20 plug included) |
| Optional | 220 Volt / 50 Hz - Special Order (power cord and plug included) |
| Amperage | Single phase - 13.5A |
| Recommended pressure | 30 p.s.i (dynamic) |
| Water consumption | 0.5 U.S. gallons per cycle (2.9 litres) |
| Water inlet connection | 3/4" male garden hose fitting (hose included) |
| Drain connection | 1" ID hose connection (hose included) |

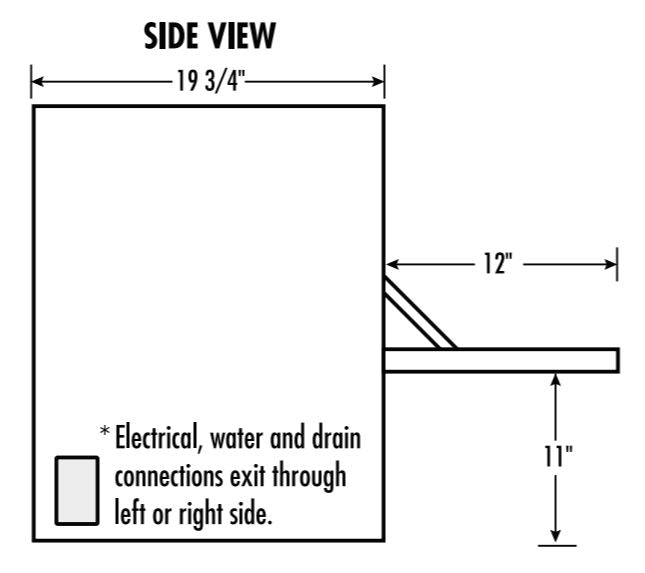

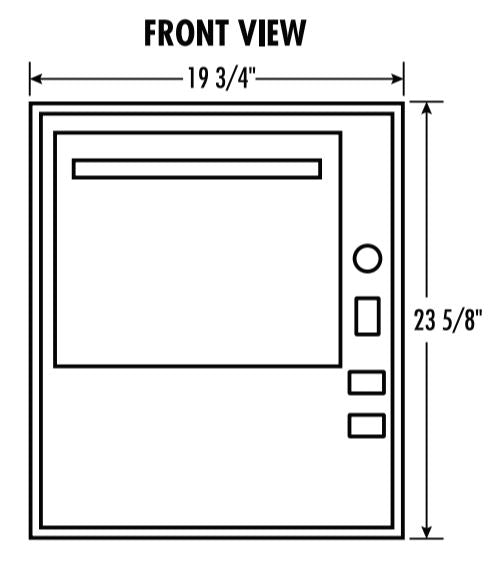

| Dimensions | |
| Width | 19.75" |
| Height | 23.75" |
| Depth | 19.75" |
| Shipping Weight | 87 lbs. |
